AX7 – A smart and quick way to run a setup process

First off:

Now to the subject at hand… The Excel quick link process guide template (EQLPGT)!

I found a nice way to create a template to quickly reach menu items without amendments, coding or rummaging through AX 7 menus. It is simple… Yes, the Task recorder is awesome and can guide you in way more detail, but it also requires some more work. If you just need to get to the menu items quickly, then read on. 🙂

This is what you do.
Create an Excel spreadsheet and use the HYPERLINK function to sow together your links.
You need two general parameters: URL and CMP (Legal entity). Give the Excel columns these names to easily referencing them (Write the name in the cell name to the left of the formula bar).

Format: =HYPERLINK(URL,NAME)
Example: =HYPERLINK(URL&”?cmp=”&CMP&”&mi=”&[Cell],[Cell])

I’ve created a spreadsheet template with some data in it that I hope you will be able to use. Click the image below to download it.

AX7_ExcelQuickLinks



AX7 UI is getting even better

Just ran though this Office Mix: https://mix.office.com/watch/1ohsrrpsd02e1 and it shows the new UI features coming to AX7 CTP8 and the upcoming release. It looks very nice!

I strongly encourage you to look through it as there are a lot of nice to know things in it.
I highlighted a couple of things that I thought was cool below in this blogpost… and it is almost everything. 🙂 Click continue reading below to look at the highlights.

Love Office Mix by the way…

Continue reading AX7 UI is getting even better

Revise your AX strategy now

The new AX version (AX 7) is getting close to release and most of the cards are on the table. There are some changes, so if you are on AX 2012 or earlier versions there are some things you should take in to account right now to not go down or continue down a path of now return. So here are some coarse changes I suggest you take in to account.

Role centers and Business intelligence

Enterprise Portal
The role center is deprecated.
The Role center is deprecated and Work spaces are introduced as a replacement. Work spaces are high level forms tailored to a specific task like Production floor management, Budget planning, Customer invoicing and so forth.
If you’ve done work on your role centers, you should pivot your focus to Power BI. You should still be able to use your SSRS reports in the new Work centers, but they are vastly inferiour to the powerfull Power BI.
I’m not saying you should stop working on BI, but just take a look at the solution that will give you greater ROI later on.

Enterprise Portal or other web portal solutions

CSS

Most of Enterprise portal is deprecated in AX7. The good thing is that Microsoft is throwing it in the trash, but I do not know of any alternative to Customer Portal or Vendor Portal yet. I will be surprised if something isn’t brewing in the R&D team to replace this as well. We’re on a web platform already, so it shouldn’t be too far fetched to imagine a solution. When it comes it will be awesome and in tune with the default development of the rest of AX.
Employee self services has an alternative that is much better in the Employee self service Work space.
If you’re thinking of implementing the AX Enterprise Portal or further enhancing it, I would suggest you wait until the replacement solution known before you do more work. Of cause if it gives you great benefit in a short term then go ahead, but just don’t expect to get future value for your investments in that area.
If you have plans or have already created a separate web portal solution for customer or vendor interaction. I would also suggest waiting before taking on a greater project before the solution in AX is revealed.

Infrastructure

This is a pretty much an echo by everyone associated with Microsoft is saying, but here goes. Planning on scaling up your servers any time soon? Even if you’re doing minor hardware upgrade, you should strongly consider Azure. Through Life cycle services you can prevision servers that can reduce your infrastructure installation by weeks.

Need an on-premise solution? Take a look at Azure Stack. If that is over-kill, then you can use a hybrid cloud solution with your old equipment.

Bottom line is that if you start moving to the cloud today, you will be better prepared when upgrading to AX7.

Time and Attendance (Part 29/30): Teams and assistance

In a dynamic factory setting where human resources go back and forth between different jobs, roles and machines it is important to track each resource to get a good overview of the costing. Some times people go around helping each other on tasks and also work as a team throughout the entire day or for a longer period of time.

When many workers work together on multiple production orders within a period, you can task one of the persons to be responsible to register time for all users. This is done by creating a “team”.

Creating a team

In a team you have the pilot and the team members. The pilot is responsible for the terminal registrations for all the team members. This is done by simply changing jobs as usual. The team members use the “assistance” functionality to join a team. Simply click Assistant and select another signed in worker to start a team.




Managing your team

An overview of current teams can be shown in the Teams form (Human resources > Inquiries > Time and attendance > Teams)

This slideshow requires JavaScript.

Teams can not be “nested”, meaning that a team can not be a part of another team. Not because of the functionality. The tree view is clearly there to illustrate a multi level hierarchy. There just isn’t any way for a team pilot to assist another team pilot. You would have to hack it to do so, and then I don’t know what happens to cost calculations.

The team pilot, Bill Malone in the example above, will change jobs and the cost of the team members (Dana and Christina) will be assigned to the jobs that the pilot is working on.

Before the pilot checks out for the day, and still is pilot, he will get a message saying he has to change pilot before checking out.

The pilot then uses the “Assistant” function as well, but since he/she is a pilot, the menu will say: Change pilot.


After selecting one of the team members to be pilot, the user will be demoted to team member. A dialogue shows to confirm this.

AX2012_TA_AssistantChangePilotConfirmed

Setup: System jobs needed

If you try to work with assistance and you get a message about missing jobs, it is because your system is not ready.

Go to the Indirect Activities (Human resources > Setup > Time and attendance > Indirect Activities), enter the “System” group and add the required jobs like this:

AX2012_TA_AssistantChangePilotJob

Add jobs for the following system functions:

  • Start assistance
  • Stop assistance
  • Change pilot

Remember to check the “registration” to be able to use it in time and attendance.

Smart use of this feature for shifts/hand off

A smart way to use this feature is if you have a resource that handles many jobs at once and do a shift change. I have a customer that has a production line where many (40-100) jobs can be active at once from about 1000 released jobs.

Instead of the shift coming on has to register to all the jobs and select them from the enormous list of jobs, he/she uses this feature for a hand-off.

This is what you do:

  1. The shift coming on signs in and registers as assistant on the one working on all the jobs.
  2. The shift going home registers the person coming on as pilot and checks out.

The jobs are then handed over. A great time saver.

AX7 – Filtering

As the UI changes, so also does the workflow. There are some new filtering features both good and bad. Keep in mind that I’m testing this on a prerelease version, so there are a few kinks to be sorted out yet, but I’ll bet you the’ll get there in time for launch.

Quick filter

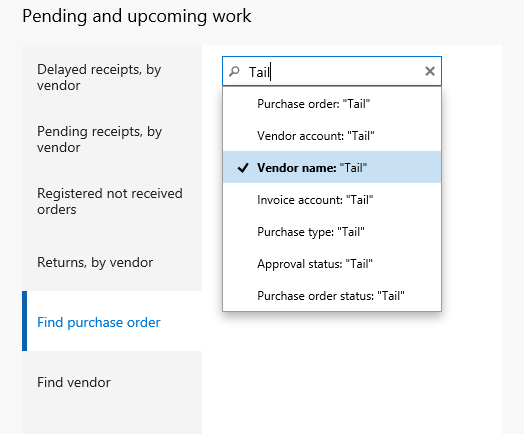

On most of the forms the quick filter is available. I’ve written a post on this earlier as well, but in general it is a quick way to find the many different types of data in just one field. The field type is selected in the dropdown. It is mostly defaulted to filter on the Description field in the grid and is a Begins with filter. Notice that you can not use the AX filter annotations here with * and ? wildcards or date filters like “..” and “d”. It doesn’t work.

AX7_Newfilter3

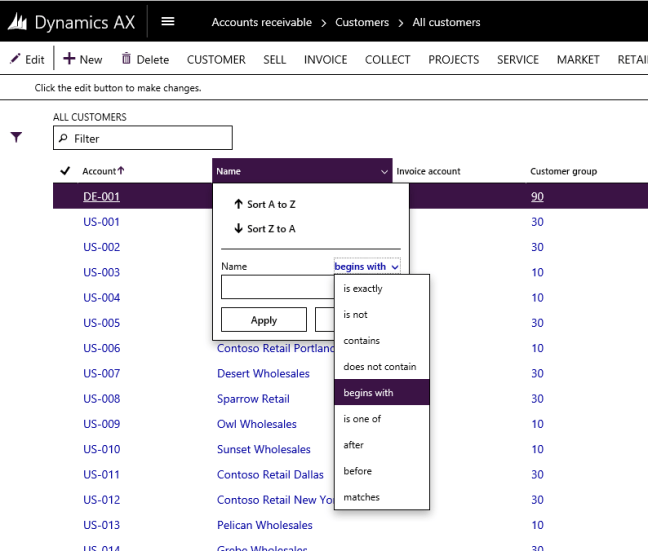

Grid filter

The grid filter criteria are given for each field in the grid. Just tap the grid header and select the way you want to filter. Wildcard does work.


Microsoft has announced in a training video that they are going to work on this and might be more in tune with the Excel searches. Hopefully with the datatype dropdown which shows unique fields in strings and dates get this drill through feature. Searching on dates is a bit of a hassle, so I would use some of the other filter options.

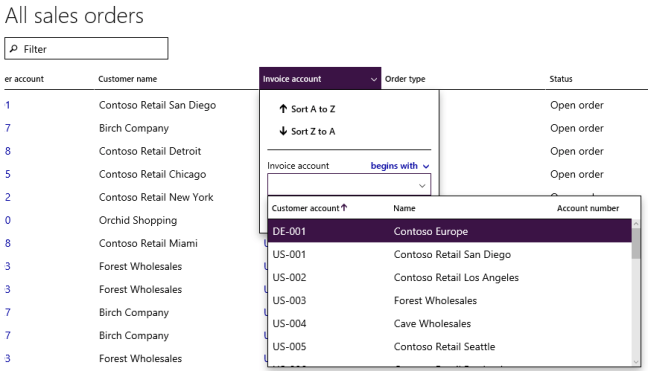

The only thing that is in place in the CPT8 right now is for lookup fields.

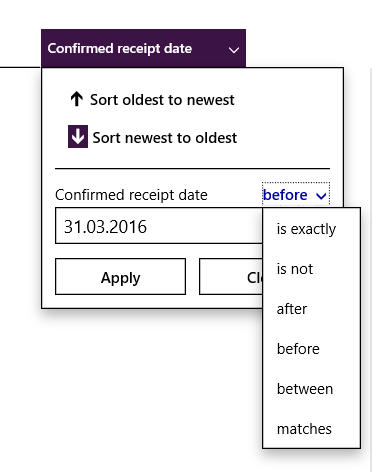

For filtering dates you can use dynamic dates like “01” is translated to the first of the current month this year and “0101” means the first of January this year. The date is transformed automatically and when you open it back up again, it shows you the transformed date. (Bug in the “Between” filter gives just “01” as value)
However you have to state the pattern of search from the date you use. You can not use the “..” syntax. This will have to be determined by selecting the right search parameter.

AX7_Filter_Grid_Date

The SysQueryRangeUtil works in this field, which is great.

Filter menu icon


To the left of most (All I’ve seen) grids there is a filter button. Clicking on this pulls out an interface where you can add fields that are not in the grid. Same function as the grid fields. That means no wildcards here either.

Microsoft also said in the training video that I referred to earlier that they will be extending the features in this dialogue to contain some elements of the advanced filter options described below.

I will put money on the fact that at least a save function will be in here when the product is ready for release.

Advanced filter

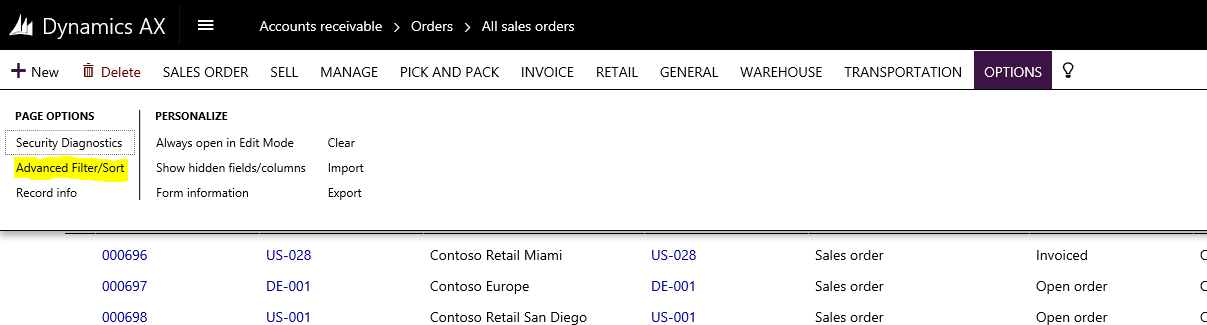

The good thing is that the advanced filter dialogue still is available that we know and love from earlier versions is still available. By going to Options in the top menu and clicking Advanced filter/sorting you’ll access this familier AX filter options dialogue.


There are some limitations for now, like that you can not use the short date versions (01..31, so use full dates for now), but it does function like before and you can save your queries like before.

AX7_Filter_Advanced_Range

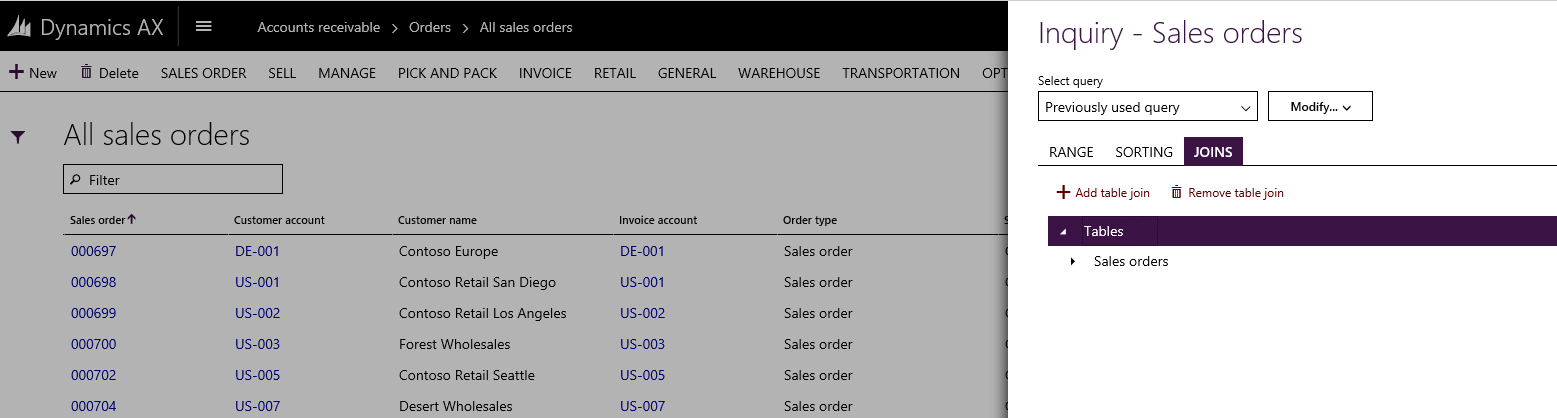

You can also do Joins to other tables like before to make a rich filter criteria.


Click to the left of the table name to add a table reference.


Then click Select to add it and it will be selectable in the range selection.

Summary

It looks like there are some faster ways to handle filters then before. I believe 90% of filtering will be done in the Quick filter and I’m excited to see the filter options from Excel being implemented into the grid filter.

The thing I’m missing is the nice AX filter features that AX users are used to like the date handler “..” to select the search pattern for date filters. I can’t seem to see a way to quickly access a filter that is stored either, but I bet you that that feature will be available once they move more features from the Advanced filter dialogue to the filter button. Hopefully you will be able to call a filter through the URL and store it as a favorite on your desktop. It shouldn’t be too hard to do that and will give GREAT value.

We’re still in preview, so I bet that the small kinks are worked out when the release is finished.









Flushing principles

I’ve had some questions from customers on how to utilize the flushing principles, so I want to try and explain it as simple as I can.

Flushing principles are settings that tell the system when to automatically deduct your BOM items during manufacturing. When executing manufacturing actions in AX you can decide to use flushing principle, always (All items) or never (No items). This way you can pull some BOM lines at different stages of production. But keep in mind what setting you use, so you don’t pull your materials multiple times or none at all.

There are three settings for a flushing principle: Start, End and Manual.

Start pulls your items on start actions. These are: Start production or start operation.

End pulls your items on end actions. These are: End operation or report as finished.

Manual won’t be pulled automatically at any manufacturing actions, but must be manually picked through a production picking list being manually posted.


Again: Be aware on how your manufacturing actions are set up to handle posting of journals.

This also applies to your route operations, cause you can apply the same concept to them as well. This is based on the route group settings.

Now go out and get some sun! 🌞



System environment setup for AX 2012

The setup for Microsoft Dynamics AX 4.0 and AX 2009 as well Axapta 3.0 (I haven’t worked with older versions) was pretty straight forward when it came to the configuration and number of environments. You had a Live environment, a Test environment and in most cases also a Development environment. You could easily make a copy of a company in any of the environments to get a place to try out transactions and that worked well. (You might have to add an separate test environment for AX 2009 if you where using the Enterprise Portal development.)

AX2012_Environment_Before

With the introduction of AX 2012 there was a lot of changes and most of us where caught of guard. There was good reasons for the changes, but the consequences of did take some experience to actually get right.

Issue #1: Company copy function was gone

Because of the global data and organization hierarchy features you couldn’t just copy a company. The feature to copy a company (legal entity) was deprecated. You would have to have a totally different environment to do that, so in the beginning we did training and process testing in the Test environment.

AX2012_Environment_Duplicate
Oh “Duplicate”…. How you are missed!



The challenges this brought was that you might have features for testing in this environment and the results might affect your training or process testing.

The result was that a new environment had to be introduced: A dedicated training environment that was identical to your Live environment.

Issue #2: CIL compiling and code management

This isn’t my area of expertise, but it is clear that the concept of CIL execution, that was new to AX 2012, have changed the way we work with the AX code.

basicservice_error_aosrestart5
Don’t be in denial, if you want to CIL compile. No errors allowed!



The AX 2012 code has to be TOTALY free for errors if you want to make a full CIL compilation, and you have to be certain that your code is the CIL runs before you move code to your Live environment.
You don’t want to move code to the Live environment and do a CIL compile without knowing if it works. As you might have multiple changes going on at the same time you would need a separate place to do the CIL compile.

The result was that a new environment had to be introduced: A dedicated environment where code could be compiled and tested before moved to the Live environment.

The new environment layout

Model = Entire model store



Live
No development, no untested code, no compiling (Unless… you meet an error that requires it). Receives code through copying the model store from the Staging environment at planned intervals.
If your business is very lokalized, like a manufacturing company with one site location, I would recommend an on-prem solution, but Azure is also a good alternative.

Training
Code is copied in parallell with Live. Receives data through DMF or by routinely copying the Live transaction database. Super users and end users use this environment if needed.
Put it in Azure.

Staging
Code is imported when approved from Test and is compiled, CIL compiled and retested. Data is routinely (at request/if needed) copied form the Live transaction database. You can have multiple updates to the staging environment before a copy to Live is done.
Put it in Azure.

Test
New code imported from development and features are tested and tried out by the super users and admins. Transactional data is copied from Live when needed.
Put it in Azure.

Development
You can either have a common development environment or multiple environments based of the same codebase. Data is rarely, but if absolutely needed copied from the Live transactional database.
Put it in Azure.

Would love some input on this if you’ve got some, so please comment with input if you’ve got any. Thanks!

Time and attendance (Part 27/31): Payroll statistical groups

Payroll employees are continuously hammered with questions like: How many vacation days do I have left? What is my flex account balance? How many overtime hours do I have so far this period? What is the balance of “this” account?
These data are often presented to the worker on the payroll report or payment slip and at that time often spark a debate with a bunch of employees all at once.

Putting continuously updated account balance information in to the hands of the worker is pretty important as it frees up a lot of time for the payroll employees. Some, but not all, of this info is presented as default in the time and attendance (Paytime, Overtime, Absence and flex). However, you may want to present the worker with other account balances, like vacation for instance.
The way you do this is by grouping together different payroll types in to “Payroll statistical groups”.

The Payroll Statistical Group also has other usages like weighing average balances within a period and I’ll go in to that in a later post, but today we’re just looking at showing balances to end users.

It is a set of accounts that you group together to show a balance, and you can choose if it should show only for the current period (Paytime, Overtime, Bonus that are paid regularly) or the total account balance (Flex and Vacation). The groups are then presented to the worker in a list that you can access in the time and attendance registration form called “Balance”, F1 shortcut in the image below.

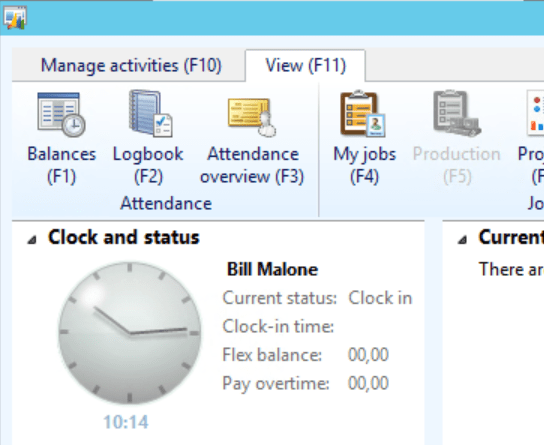

AX2012_TA_PayrollStatisticsQuickview

Note: The flex account and overtime are displayed in the users status window, but can also be added to this list. Also on the balance overview list you’ll find your standard payment


To set this up you must first set up the entity that group your accounts for a summed balance. Go to Human Resources > Setup > Time and attendance > Payroll > Payroll Statistics.

Create the summary groups for your accounts. “Transfer” means that the account balance for previous periods are accumulated in the view.

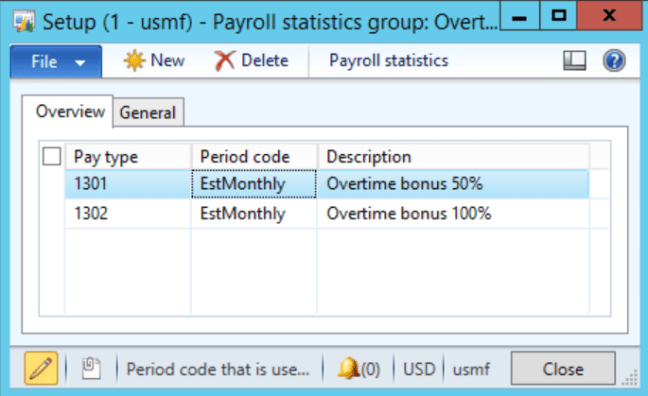

Go to “Setup” and add your accounts.


Now choose what balances you want the workers to view in the time and attendance registration form.

AX2012_TA_PayrollStatisticsBalance

That is it! Now you can present any kind of account balances to an employee and ease off many questions to the HR/payroll department.

Good luck!



AX7 – Naming paradigme

The New Microsoft Dynamics AX, formerly known as codename Rainier, and then simply AX7 after it’s version number, is just around the corner. According to MSDynmicsWorld.com it is looking to be generally available as soon as March 2016, but what are we going to call it??

It is rumored that the new AX is just going to be called just that: “AX”. Microsoft does like many other companies have done before, and are removing the version number from the name. Like “The new iPad”…

Does this mean that it is the final version of AX and that from now on only improvements to the platform is going to be released? I bet we’ll see a version 8 down the road, but for now I’m happy with the notion that we’re going to have a continuous updated solution on a rapid release plan.

But we have to refer to some kind of version right? Are we going to call it “The new AX”, “The latest AX”, “The final AX”, “AX as a service”? All our customers are on AX. Some on AX 2009 (Version 5) and some on AX 2012 (Version 6), many companies even run version 3. I think I’ll just be calling it AX7 to be clear on what version number we are talking about.

AX7 – User Relations

In earlier versions of AX we had User Relations to connect a user to an employee or a contact for a customer or vendor.

In AX 7 this is actually simplified. It took me a while to find it, but when I did it was pretty obvious.

You can only connect a user to a contact. The type of contact is then related to some type of entity. Preferably an employee, because there are no customer portals any more.

This is what you do:

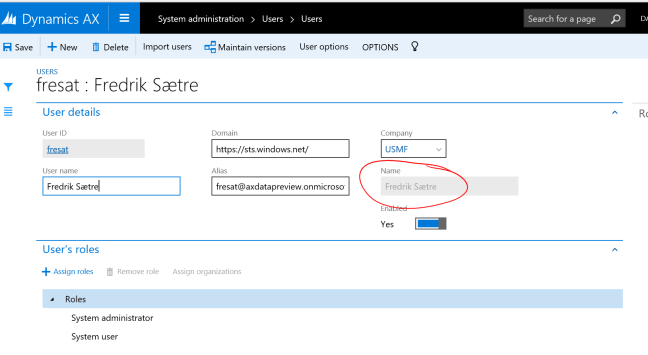

Go to the User form (System administration > Users > Users) and put the contact in the “Name” field.

AX7_UserRelation

If you wanted to change the relation you go to “maintain versions” in the top menu to update the record. This is pretty neat as it is date controlled and a user can change the party relation at a certain time, this also maintains your history.

Simple! Right?!
